Ball valves - automatically operated

List prices PL
RI5198
Mounting bracket; F10/F10; Bolt 18-17
C3M-BA056-40-A
Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
C3M-BA055-40-A
Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA473-125-S0
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PEEK Thickness Reduced; Stem Reinforced 17-4-PH; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 125mm; Length 196mm; Actuator PAS2005
RI3196
Mounting bracket; F14-F10; Bolt 36-18

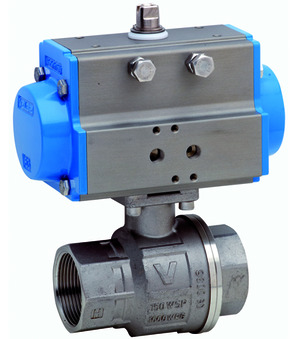

BA842-20-D0
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 135mm; Actuator PAD052

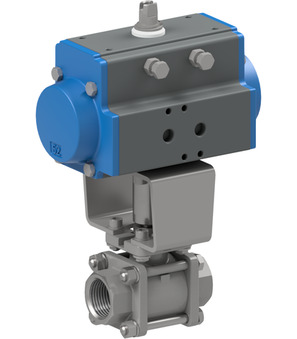

BA410-38-S0
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-Reinforced with carbographite/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+160°C; With additional compensation hole in the ball; RP 3/8"; Nominal diameter 10mm; Pressure range 0-64bar; Length 57mm; Actuator PAS0525
BA357-112-0H2
Ball valve with electrical actuator Series BA357; Female thread; Body Zinc plated steel; Ball 1.4571 Hard chrome plated; Seals POM With Erosion protection ring/FPM(AED); Medium temperature -40...+100°C; G 11/2"; Nominal diameter 40mm; Pressure range 0...350bar; Length 130mm; Actuator VB190-H; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Operating time 27s; Voltage 100-240VAC; Protection class IP67
BA069-10-0Q-A
Ball valve with electrical actuator; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; PTFE-Graphite reinforced/FKM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-105bar; Length 93mm; Electrical actuator VRX45-0Q15-Q17; Protection class IP68; Operating time 15 Seconds; Voltage 100-240V/50-60Hz; 100-350VDC; ATEX II 2 G/D Exd IIB T6 Gb / Ex tb IIIC T80°C Db
BA069-114-0Q-A
Ball valve with electrical actuator; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; PTFE-Graphite reinforced/FKM; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-64bar; Length 100mm; Electrical actuator VRX45-0Q15-Q17; Protection class IP68; Operating time 15 Seconds; Voltage 100-240V/50-60Hz; 100-350VDC; ATEX II 2 G/D Exd IIB T6 Gb / Ex tb IIIC T80°C Db
BA069-112-0Q-A
Ball valve with electrical actuator; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; PTFE-Graphite reinforced/FKM; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-64bar; Length 110mm; Electrical actuator VRX45-0Q15-Q17; Protection class IP68; Operating time 15 Seconds; Voltage 100-240V/50-60Hz; 100-350VDC; ATEX II 2 G/D Exd IIB T6 Gb / Ex tb IIIC T80°C Db
BA069-20-0Q-A
Ball valve with electrical actuator; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; PTFE-Graphite reinforced/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-64bar; Length 131mm; Electrical actuator VRX75-0Q20-Q17; Protection class IP68; Operating time 20 Seconds; Voltage 100-240V/50-60Hz; 100-350VDC; ATEX II 2 G/D Exd IIB T6 Gb / Ex tb IIIC T80°C Db
BA389-50-0Q-A
Flanged ball valve with electrical actuator Series BA389-0Q-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4408; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Medium temperature -40...+180°C; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN16/40; Length 83mm; Electrical actuator VRX75-0Q20-Q17; Protection class IP68; Operating time 20s; Voltage 100-240V/50-60Hz; 100-350VDC; ATEX II 2 G/D Exd IIB T6 Gb / Ex tb IIIC T80°C Db
BA055-80-0H
Flanged ball valve with electrical actuator Series BA055; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 260mm; Pressure range 0…16bar; Flange PN16; Actuator VB190-H; 100-240VAC; IP67; Operating time 27s; Ball L
BA116-15-S0-A
Flanged ball valve with pneumatic actuator Series BA116-S0-A; ATEX II 2 G/D; Flange PN63; Body Steel 1.0570; Ball 1.4301; Seals Fibre-glass-reinforced PTFE/FKM; Single acting Actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...63bar; Nominal diameter 15mm; Length 55mm; Actuator PAS0755
BA116-25-S0-A
Flanged ball valve with pneumatic actuator; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; Flange PN63; Body Steel 1.0570; Ball 1.4301; Seals Fibre-glass-reinforced PTFE/FKM; Single acting actuator; ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T85°C Db; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...63bar; Nominal diameter 25mm; Length 65mm; Actuator PAS0855
BA116-50-S0-A
Flanged ball valve with pneumatic actuator Series BA116-S0-A; ATEX II 2 G/D; Flange PN63; Body Steel 1.0570; Ball 1.4301; Seals Fibre-glass-reinforced PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…63bar; Nominal diameter 50mm; Length 100mm; Actuator PAS1155
BA179-15-S0-A
Flanged ball valve with pneumatic actuator Series BA179-S0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R101; Flange PN100; Full bore; Body steel A350-LF2; Ball 1.4301; Seals PTFE-metal reinforced/Graphoil/FKM; Pressure range 0...100bar; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...100bar; Length 55mm; Actuator PAS0755
BA043-25-0H-01
Flanged ball valve with electrical actuator Series BA043-0H-01; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 25mm; Pressure range 0-16bar; Length 46mm; Electrical actuator VB030M-0F8-Q11; Operating time 8s; Voltage 100-240VAC; Protection class IP68; Body Aluminum
BA043-50-0H-01
Flanged ball valve with electrical actuator Series BA043-50-0H-01; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 50mm; Pressure range 0-16bar; Length 82mm; Electrical actuator VB060M-0F9-Q14; Operating time 9s; Voltage 100-240VAC; Protection class IP68; Body Aluminum
