Ball valves - automatically operated

List prices PL
BA233-25S-0L
Ball valve with electrical actuator; Male thread according to DIN 2353; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; 25S/M36x2; Nominal diameter 20mm; Pressure range 0...420bar; Length 109mm; Operating time 27s; Voltage 24VDC
BA091-50-D0
Ball valve with pneumatic actuator; For steam; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 50mm; Pressure range 0-15bar; Length 136mm; Actuator PAD075
BA033-10-S0-0
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-25bar; Length 92mm; Actuator PAS1005, Free of oil and grease for oxygen
BA691-80-B
Flanged ball valve; Flange PN16; Full bore; Body Zinc plated steel; Seals PTFE/FEP; Length EN558 R27; Nominal diameter 80mm; Length 180mm; ISO-Flange F10 For mounting an actuator; Square 22mm

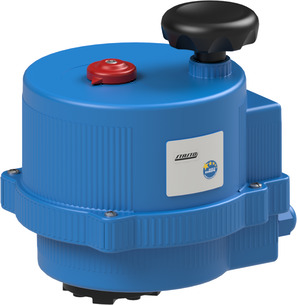

VB110-F-01
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-star 17mm; Voltage 100-240VAC; Protection class IP67; UL-Approval

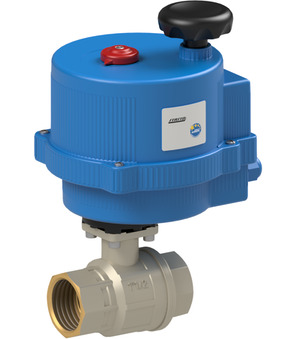

BA080-12-PL
Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 24VAC/DC; NC-Accumulator for safety position
BA080-12-QL
ball valve with electrical actuator; female thread; housing, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 1/2"; DN 15mm; pressure range 0-40bar; length 67mm; operating time 8s; voltage 24VAC/DC; NO-accumulator for safety position
BA622-20-D0-A
ball valve with pneumatic actuator; flange PN63; according to ATEX; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...63bar; nominal diameter 20mm; length 60mm; actuator PAD063
BA168-34N-S0-AH3C-01
ball valve with pneumatic actuator; ATEX II 2 G/D T4; Double clamping ring; body AISI 316L polished; ball AISI 316L; seals PTFE/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+170°C; connection 18 x 1,5mm; nominal diameter 20mm; pressure range 0-100bar; actuator PAS0855; free of oil and grease for hydrogen; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
VB110-0E54-Q17-01
Electrical actuator; Suitable for Valves with 180° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 54s; Flange ISO5211 F07/F10-star 17mm; Voltage 24VAC/DC; Protection class IP67
BAC1-009-SSTV-D0A
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; ATEX; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAD075
BA080-34-QE
Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 8s; Voltage -24VAC/DC; Safety position NO
BA793-25-L
Flanged ball valve; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK/FKM; For gases;With erosion protection ring; Medium temperature -30...+100°C; Nominal diameter DN25 SAE 210 M. ISO6162-1; Pressure range 0...320bar; Flange PN320
BA701-10-B-0
high pressure ball valve; female thread; housing AISI 316Ti; ball AISI 316Ti hard chrome plated; seals PEEK/FKM; with erosion protection ring; for gases; medium temperature -40...+200°C; connection G1"; nominal diameter 25mm; pressure range 0...350bar; length 113mm; free of oil and grease for oxygen; flange ISO5211 F05; square 14mm
BA146-20-D0-01
STASTO Combination#br#Ball valve with pneumatic actuator; Butt weld ends Long; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 276mm; Actuator PAD052; Limit switch box EB0X03; 5/2-way solenoid valve - NAMUR type ABS54; 24VDC-LED
BA272-25-S0
Ball valve with pneumatic actuator; Flange PN40; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+170°C; Pressure range 0...40bar; Nominal diameter 25mm; Length 125mm; Actuator PAS0855
BA337-32-S0-01
Ball valve with pneumatic actuator; Welding ends DIN11850 35x1,5; Body, Ball 1.4404; Seals PTFE/EPDM-Peroxide; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -45...+150°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 126mm; Actuator PAS0855
BA075-40-D0
Flanged ball valve with pneumatic actuator; Fire-safe; TA-Luft; Length According to EN558−1 R1; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 200mm; Actuator PAD063
BA486-114N-S0-AH
Ball valve with pneumatic actuator; ATEX II 2 G/DT4 Female thread; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+150°C; Connection 11/4"NPT; Nominal diameter 32mm; Pressure range 0-64bar; Length 92mm; Actuator PAS1005; Free of oil and grease for hydrogen
PAD063-SS
Pneumatic actuator; Double acting; ATEX II 2 G/D; Completely made of stainless steel; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 96Nm
