Armatures

List prices PL
2/2-way solenoid valve Series 21H..K0Y

2/2-way solenoid valve Series 21H..K0Y

Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm

2/2-Wege-Magnetventil Serie 21H..K0Y
To Series: 2/2-way solenoid valve Series 21H..K0Y
Varianten
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type Sequence
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 12VDC CE With integrated LED-yellow and VDR - 21HT5K0Y160-GDV-GDH14012CS-C003-32-LV-2 20180115
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 24VDC ATEX II 3 G/D ATEX - 21HT5K0Y160-GDV-GDV14024C3-C003-31-9-01 20180116
21IH5K1V200-BDA08110DS-C003-32-LV-1
21IH5K1V200
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/4"; DN 20mm; Pressure AC 0-14bar; Pressure DC 0-6bar; Medium -10/+120°C; Length 75mm; Standard coil BDA
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 3/4" 20 mm 75 mm 0...14 bar 0...6 bar -10...+120 °C 110V/50-60Hz AC With integrated LED-yellow and VDR CE 21IH5K1V200-BDA08110DS-C003-32-LV-1
21HT5K0Y160-GDV-GDV14024CY-C003-32-6
21HT5K0Y160-GDV
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Length 70mm; Standard coil GDV
GDV14024CY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24VDC; Approval CSA/UL/VDE
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21H..K0Y
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 24VDC UL/CSA/VDE Standard - 21HT5K0Y160-GDV-GDV14024CY-C003-32-6
21IH5K1V200-BDA08223DS-C003-32-6
21IH5K1V200
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/4"; DN 20mm; Pressure AC 0-14bar; Pressure DC 0-6bar; Medium -10/+120°C; Length 75mm; Standard coil BDA
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 3/4" 20 mm 75 mm 0...14 bar 0...6 bar -10...+120 °C 220-230V/50-60Hz AC Standard CE 21IH5K1V200-BDA08223DS-C003-32-6
21HT5K0Y160-GDV-GDV14024CY-C003-31-CV20-6
21HT5K0Y160-GDV
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Length 70mm; Standard coil GDV
GDV14024CY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24VDC; Approval CSA/UL/VDE
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21H..K0Y
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 24VDC UL/CSA/VDE With moulded PVC-cable (2 m) - 21HT5K0Y160-GDV-GDV14024CY-C003-31-CV20-6
21IH5K1V200-BDA08223DS-C003-31-CV20-6
21IH5K1V200
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/4"; DN 20mm; Pressure AC 0-14bar; Pressure DC 0-6bar; Medium -10/+120°C; Length 75mm; Standard coil BDA
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 3/4" 20 mm 75 mm 0...14 bar 0...6 bar -10...+120 °C 220-230V/50-60Hz AC With moulded PVC-cable (2 m) CE 21IH5K1V200-BDA08223DS-C003-31-CV20-6
21HT5K0Y160-GDV-GDV14024CY-C003-32-LV-2
21HT5K0Y160-GDV
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Length 70mm; Standard coil GDV
GDV14024CY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24VDC; Approval CSA/UL/VDE
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: 2/2-way solenoid valve Series 21H..K0Y
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 24VDC UL/CSA/VDE With integrated LED-yellow and VDR - 21HT5K0Y160-GDV-GDV14024CY-C003-32-LV-2
21IH5K1V200-BDA08223DS-C003-32-LV-1
21IH5K1V200
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/4"; DN 20mm; Pressure AC 0-14bar; Pressure DC 0-6bar; Medium -10/+120°C; Length 75mm; Standard coil BDA
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 3/4" 20 mm 75 mm 0...14 bar 0...6 bar -10...+120 °C 220-230V/50-60Hz AC With integrated LED-yellow and VDR CE 21IH5K1V200-BDA08223DS-C003-32-LV-1

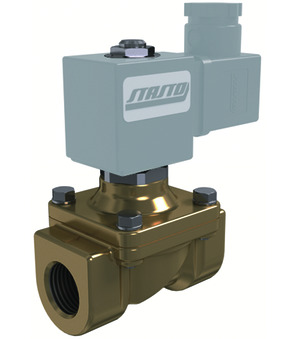

2/2-way solenoid valve Series 21H..K0Y

2/2-way solenoid valve Series 21H..K0Y

Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm

2/2-Wege-Magnetventil Serie 21H..K0Y
To Series: 2/2-way solenoid valve Series 21H..K0Y
Varianten
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type Sequence
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 24V/50-60Hz UL/CSA/VDE Standard - 21HT5K0Y160-GDV-GDV14024DY-C003-32-6 20180120
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 24V/50-60Hz UL/CSA/VDE With moulded PVC-cable (2 m) - 21HT5K0Y160-GDV-GDV14024DY-C003-31-CV20-6 20180121

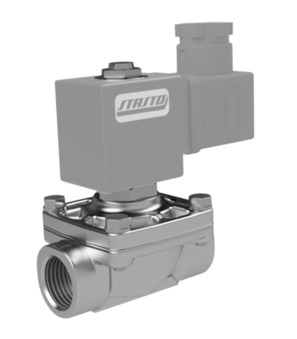

2/2-way solenoid valve Series 21IH

2/2-way solenoid valve Series 21IH

Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm

2/2-Wege-Magnetventil Serie 21IH 2/2-Wege-Magnetventil Serie 21IH
To Series: 2/2-way solenoid valve Series 21IH
Grundversion
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type Sequence
G 3/4" 20 mm 75 mm 0...14 bar 0...14 bar -10...+140 °C - - - - 21IH5K1V200-GDV 20180121
Varianten
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type Sequence
G 3/4" 20 mm 75 mm 0...14 bar 0...14 bar -10...+140 °C 12VDC - Standard CE 21IH5K1V200-GDV-GDH14012CS-C003-32-6 20180122
21HT5K0Y160-GDV-GDV14024DY-C003-32-LV-2
21HT5K0Y160-GDV
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Length 70mm; Standard coil GDV
GDV14024DY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24V/50-60Hz; Approval CSA/UL/VDE
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: 2/2-way solenoid valve Series 21H..K0Y
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 24V/50-60Hz UL/CSA/VDE With integrated LED-yellow and VDR - 21HT5K0Y160-GDV-GDV14024DY-C003-32-LV-2
21IH5K1V200-GDV-GDH14012CS-C003-31-CV20-6
21IH5K1V200-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/4"; DN 20mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Medium -10/+140°C; Length 75mm; Standard coil GDV
GDH14012CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 12VDC; Approval CE
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 3/4" 20 mm 75 mm 0...14 bar 0...14 bar -10...+140 °C 12VDC - With moulded PVC-cable (2 m) CE 21IH5K1V200-GDV-GDH14012CS-C003-31-CV20-6
21HT5K0Y160-GDV-GDV14220CS-C003-32-6
21HT5K0Y160-GDV
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Length 70mm; Standard coil GDV
GDV14220CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 220VDC; Approval CE
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21H..K0Y
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 220VDC CE Standard - 21HT5K0Y160-GDV-GDV14220CS-C003-32-6
21IH5K1V200-GDV-GDH14012CS-C003-32-LV-2
21IH5K1V200-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/4"; DN 20mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Medium -10/+140°C; Length 75mm; Standard coil GDV
GDH14012CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 12VDC; Approval CE
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 3/4" 20 mm 75 mm 0...14 bar 0...14 bar -10...+140 °C 12VDC - With integrated LED-yellow and VDR CE 21IH5K1V200-GDV-GDH14012CS-C003-32-LV-2
2/2-way solenoid valve Series 21H..K0Y

2/2-way solenoid valve Series 21H..K0Y

Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm

2/2-Wege-Magnetventil Serie 21H..K0Y
To Series: 2/2-way solenoid valve Series 21H..K0Y
Varianten
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type Sequence
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 220VDC CE With moulded PVC-cable (2 m) - 21HT5K0Y160-GDV-GDV14220CS-C003-31-CV20-6 20180124
G 3/4" 16 mm 70 mm 0...14 bar 0...14 bar NBR -10...+90 °C 220VDC CE With integrated LED-yellow and VDR - 21HT5K0Y160-GDV-GDV14220CS-C003-32-LV-1 20180125
21IH5K1V200-GDV-GDV14024CY-C003-32-6
21IH5K1V200-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 3/4"; DN 20mm; Pressure AC 0-14bar; Pressure DC 0-14bar; Medium -10/+140°C; Length 75mm; Standard coil GDV
GDV14024CY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24VDC; Approval CSA/UL/VDE
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 3/4" 20 mm 75 mm 0...14 bar 0...14 bar -10...+140 °C 24VDC - Standard UL/CSA/VDE 21IH5K1V200-GDV-GDV14024CY-C003-32-6
