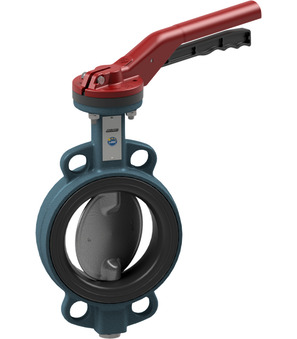

Butterfly valve with hand lever BUWV-065-DSE-L

Name: Butterfly valve with hand lever BUWV-065-DSE-L
Brand: STASTO
SKU: BUWV-065-DSE-L
Price: 1334.5 PLN
Availability: InStock

Butterfly valve with hand lever Series BUWV-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN25; Medium temperature -10...+130°C; Pressure range 0…25bar; DN 65mm; Length 43mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.05 Kg
Short Itemnumber: BUWV065DSEL

butterfly valve with hand lever series BUWV-DSE-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN25; medium temperature -10...+130°C; pressure range 0…25bar; DN 65mm; length 43mm

1.334,50 zł 1334.5 PLN 1.334,50 zł

DN
- 65 mm
Length
- 43 mm

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

DN	65 mm
Length	43 mm

BUWV-065-DSE-B x 1.0

Butterfly valve with bare shaft BUWV-065-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 65mm; Length 46mm; Pressure range 0…25bar; Flange PN25
