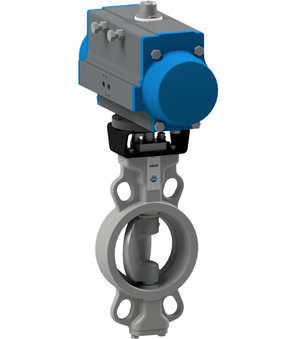

Butterfly valve with pneumatic actuator BUW9-200-SSIQ-S42

Name: Butterfly valve with pneumatic actuator BUW9-200-SSIQ-S42
Brand: STASTO
SKU: BUW9-200-SSIQ-S42

Butterfly valve with pneumatic actuator Series BUW9-SSIS-S4; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Actuator PAS2707-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 129.0 Kg
Short Itemnumber: BUW9200SSIQS42

butterfly valve with pneumatic actuator series BUW9-SSIS-S4; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat Inconel 625; nominal flange pressure PN10/16/25/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; pressure range 0...25bar; DN 200mm; length 61mm; actuator PAS2707-H

On request

DN
- 200 mm
Length
- 61 mm
Actuator
- PAS2707-H

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	200 mm
Length	61 mm
characteristics
Actuator	PAS2707-H

BUW9-200-SSIQ-B x 1.0

Butterfly valve with bare shaft BUW9-200-SSIQ-B

Butterfly valve with bare shaft Series BUW9-SSIS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/26/ANSI150

Add to Cart

PAS2707-H x 1.0

Pneumatic actuator PAS2707-H

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 270mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 1076Nm

Add to Cart

APKTGB0153 x 1.0
