BUW9-150-SSRS-S42-01

Name: BUW9-150-SSRS-S42-01
Brand: STASTO
SKU: BUW9-150-SSRS-S42-01
Price: 26953.1 PLN
Availability: InStock

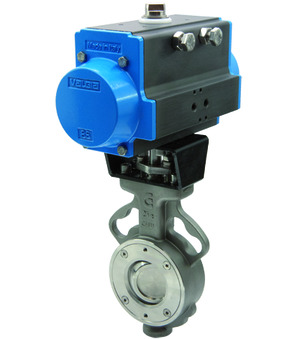

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -55...+230°C; DN 150mm; Length 56mm; Pressure range 0...25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS2305-L

Intrastat No.: 84818085
Country of origin: Italy
Weight: 81.63 Kg
Short Itemnumber: BUW9150SSRSS4201

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body and disc AISI 316, shaft AISI 630; seat RTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -55...+230°C; DN 150mm; length 56mm; pressure range 0...25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS2305-L

26.953,10 zł 26953.1 PLN 26.953,10 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW9-150-SSRS-B x 1.0

Butterfly valve with bare shaft BUW9-150-SSRS-B

Butterfly valve with bare shaft Series BUW-SSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -55...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart

PAS2305 x 1.0

Pneumatic actuator PAS2305

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm

Add to Cart

APKTGB0014 x 1.0
