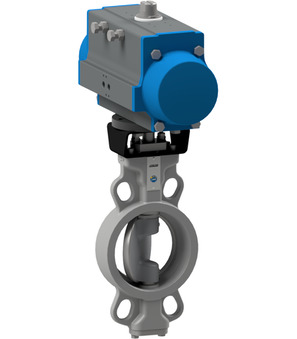

Butterfly valve with pneumatic actuator BUW9-150-CSRS-D22-01

Butterfly valve with pneumatic actuator BUW9-150-CSRS-D22-01

butterfly valve with pneumatic actuator series BUW-CSRS-D; wafer type; double eccentric; length according to EN558−1R20; housing steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD125-HB

Intrastat No.: 84818085
Country of origin: Italy
Weight: 25.23 Kg
Short Itemnumber: BUW9150CSRSD2201
https://www.stasto.pl/web/image/product.template/178128/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BUW-CSRS-D; wafer type; double eccentric; length according to EN558−1R20; housing steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD125-HB

10.571,40 zł 10571.4 PLN 10.571,40 zł

cena na zapytanie

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
pressure
Pressure range 0...10 bar
characteristics
Actuator PAD125-H
BUW9-150-CSRS-B x 1.0
Butterfly valve with bare shaft BUW9-150-CSRS-B
Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
Pneumatic actuator PAD125-HB
PAD125-HB x 1.0
Pneumatic actuator PAD125-HB
Pneumatic actuator Series PAD; ATEX II 2 G/D c T6; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Pinion turned by 90°; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm
