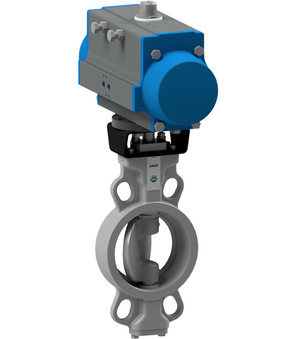

Butterfly valve with pneumatic actuator BUW9-150-CSRS-D12
Butterfly valve with pneumatic actuator BUW9-125-CSRS-D42
Butterfly valve with pneumatic actuator BUW9-125-CSRS-D42
8.763,50 zł
8.763,50 zł
Butterfly valve with pneumatic actuator BUW9-150-CSRS-D42
Butterfly valve with pneumatic actuator BUW9-150-CSRS-D42
10.174,10 zł
10.174,10 zł

Butterfly valve with pneumatic actuator BUW9-150-CSRS-D12

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD115

Intrastat No.: 84818085
Country of origin: Italy
Weight: 22.93 Kg
Short Itemnumber:BUW9150CSRSD12
https://www.stasto.pl/web/image/product.template/150502/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BUW9-CSRS-D; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 150mm; length 56mm; pressure range 0…16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD115

9.834,90 zł 9834.9 PLN 9.834,90 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
pressure
Pressure range 0...16 bar
characteristics
Actuator PAD115
BUW9-150-CSRS-B x 1.0
Butterfly valve with bare shaft BUW9-150-CSRS-B
Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
Pneumatic actuator PAD115
PAD115 x 1.0
Pneumatic actuator PAD115
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
Add to Cart
