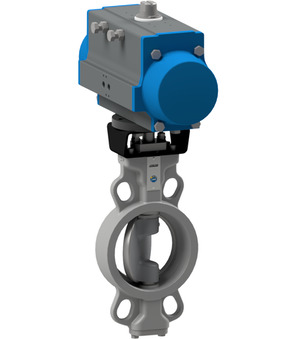

Butterfly valve with pneumatic actuator BUW9-150-CSIS-S22

Butterfly valve with pneumatic actuator BUW9-150-CSIS-S22

Butterfly valve with pneumatic actuator Series BUW9-CSIS-S; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS2005-H

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 71.4 Kg
Short Itemnumber: BUW9150CSISS22
https://www.stasto.pl/web/image/product.template/149695/image_1920?unique=bcfc56d

butterfly valve with pneumatic actuator series BUW9-CSIS-S; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS2005-H

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Flange
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
Pressure range 0...10 bar
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
BUW9-150-CSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-150-CSIS-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Pneumatic actuator PAS2005-H
PAS2005-H x 1.0 Pcs
Pneumatic actuator PAS2005-H
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm
APKT001000 x 1.0 Pcs
APKT001000
Mounting bracket For butterfly valve; DN200; F14/F12-F14/F10-17-36
