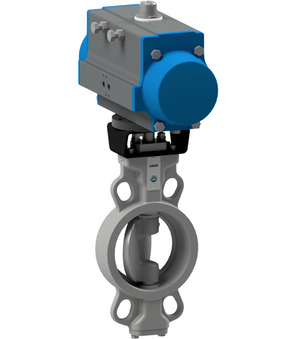

Butterfly valve with pneumatic actuator BUW9-150-CSIS-D22

Butterfly valve with pneumatic actuator BUW9-150-CSIS-D22

Butterfly valve with pneumatic actuator Series BUW-CSIS-D; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD125-H

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 24.88 Kg
Short Itemnumber: BUW9150CSISD22
https://www.stasto.pl/web/image/product.template/150464/image_1920?unique=3b396ba

butterfly valve with pneumatic actuator series BUW-CSIS-D; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD125-H

11.336,60 zł 11336.6 PLN 11.336,60 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150

BUW9-150-CSIS-D22

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW9-150-CSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-150-CSIS-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Pneumatic actuator PAD125-H
PAD125-H x 1.0 Pcs
Pneumatic actuator PAD125-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm
APKTGB0049 x 1.0 Pcs
APKTGB0049
Mounting bracket; For damper; DN200; F10/F07-17-22
