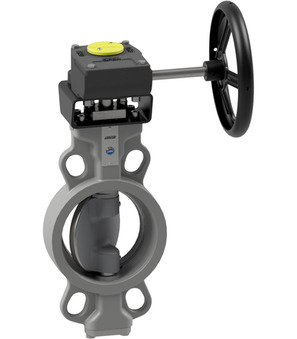

Butterfly valve with manual gear box BUW9-125-SSRS-G

Butterfly valve with manual gear box BUW9-125-SSRS-G

Butterfly valve with manual gear box Series BUW-SSR-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 125mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 14.72 Kg
Short Itemnumber: BUW9125SSRSG
https://www.stasto.pl/web/image/product.template/134868/image_1920?unique=c096d6d

butterfly valve with manual gear box series BUW-SSR-G; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 125mm; length 56mm; nominal flange pressure PN10/16/25/ANSI150

8.077,10 zł 8077.1 PLN 8.077,10 zł

cena na zapytanie

  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 125 mm
Length 56 mm
Flange PN10/16/25, ANSI150
pressure
Pressure range 0...25 bar
BUW9-125-SSRS-B x 1.0
Butterfly valve with bare shaft BUW9-125-SSRS-B
Butterfly valve with bare shaft Series BUW-SSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 125mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
GB02-10/17-01
GB02-10/17-01 x 1.0
GB02-10/17-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 500Nm; Flange ISO5211 F10; Female square 17mm
Add to Cart
