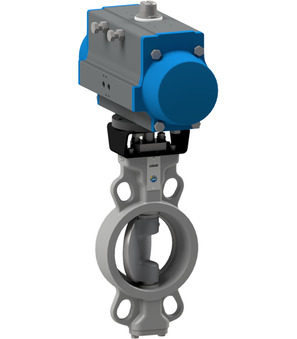

Butterfly valve with pneumatic actuator BUW9-125-CSRS-S42

Name: Butterfly valve with pneumatic actuator BUW9-125-CSRS-S42
Brand: STASTO
SKU: BUW9-125-CSRS-S42
Price: 13075.9 PLN
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW9-CSRS-S; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C; DN 125mm; Length 56mm; Pressure range 0…25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS1605

Intrastat No.: 84818085
Country of origin: Italy

Weight: 40.96 Kg
Short Itemnumber: BUW9125CSRSS42

butterfly valve with pneumatic actuator series BUW9-CSRS-S; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 125mm; length 56mm; pressure range 0…25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1605

13.075,90 zł 13075.9 PLN 13.075,90 zł

excl. tax

DN
- 125 mm
Length
- 56 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...25 bar
Actuator
- PAS1605

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...25 bar
DN	125 mm
Length	56 mm
Flange	PN10/16/25, ANSI150

Specifications
Spare Parts

Pressure range	0...25 bar
DN	125 mm
Length	56 mm
Flange	PN10/16/25, ANSI150

BUW9-125-CSRS-B x 1.0 Pcs

Butterfly valve with bare shaft BUW9-125-CSRS-B

Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 125mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
