Butterfly valve with manual gear box Series BUW-CSR-G Store

Butterfly valve with manual gear box BUW9-125-CSRS-G

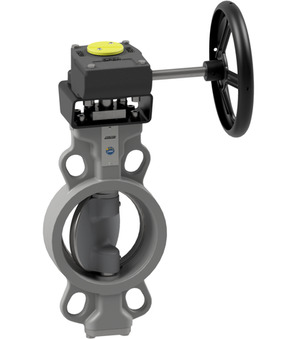

Name: Butterfly valve with manual gear box BUW9-125-CSRS-G
Brand: STASTO
SKU: BUW9-125-CSRS-G
Price: 7367.4 PLN
Availability: InStock

Butterfly valve with manual gear box Series BUW-CSR-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Pressure range 0...25bar; Medium temperature -10...+230°C; DN 125mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.42 Kg
Short Itemnumber: BUW9125CSRSG

butterfly valve with manual gear box series BUW-CSR-G; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; pressure range 0...25bar; medium temperature -10...+230°C; DN 125mm; length 56mm; nominal flange pressure PN10/16/25/ANSI150

7.367,40 zł 7367.4 PLN 7.367,40 zł

DN
- 125 mm
Length
- 56 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...25 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	125 mm
Length	56 mm
Flange	PN10/16/25, ANSI150
pressure
Pressure range	0...25 bar

BUW9-125-CSRS-B x 1.0

Butterfly valve with bare shaft BUW9-125-CSRS-B

Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 125mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
