BUW9-100-CSIS-TF2-C

BUW9-100-CSIS-TF2-C

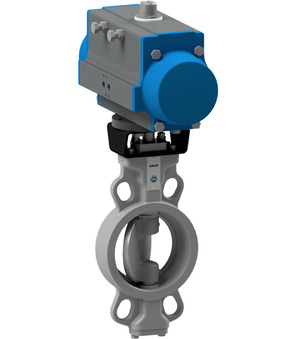

Butterfly valve with pneumatic actuator; High temperature design; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel; Coating RAL 9006; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+600°C; DN 100mm; Length 52mm; Pressure range 0...0,5bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS1255-H

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 14.25 Kg
Short Itemnumber: BUW9100CSISTF2C
https://www.stasto.pl/web/image/product.template/211603/image_1920?unique=f96ddcc

butterfly valve with pneumatic actuator; high temperature design; wafer type; double eccentric; length according to EN558−1R20; body steel; coating RAL 9006; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+600°C; DN 100mm; length 52mm; pressure range 0...0,5bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1255-H

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

    This combination does not exist.

    Availability:
    See availability
    Contact Us

    Technical specifications

    Pressure range 0...0,5bar
    Documents
    Data sheets, drawings and CAD files
    Pressure range 0...0,5bar

    BUW9-100-CSIS-TF2-C

    Documents

    1 Documents

    Language-independent
    ZIP

    CAD / 3D

    1
    BUW9-100-CSIS-B-01 x 1.0 Pcs
    Butterfly valve with bare shaft BUW9-100-CSIS-B-01
    Butterfly valve with bare shaft; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+600°C; Pressure range 0...25bar; DN 100mm; Length 52mm; Nominal flange pressure PN10/16/25/ANSI150; High temperature design; Coating RAL 9006
    Pneumatic actuator PAS1255-HBA
    PAS1255-HBA x 1.0 Pcs
    Pneumatic actuator PAS1255-HBA
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Pinion turned by 90°; Inverse direction of rotation; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
    MFFALFUAL09733 x 1.0 Pcs
    MFFALFUAL09733
    Adapter For butterfly valve DN40-DN150; F07/F07
