BUW9-080-SSRS-L-H

Name: BUW9-080-SSRS-L-H
Brand: STASTO
SKU: BUW9-080-SSRS-L-H

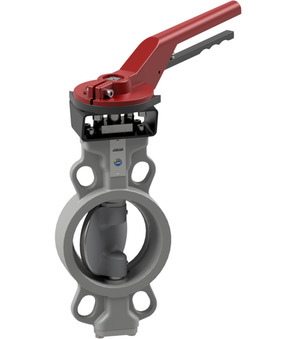

Butterfly valve with hand lever; Wafer type; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -55...+230°C; Pressure range 0...25bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.15 Kg
Short Itemnumber:BUW9080SSRSLH

butterfly valve with hand lever; wafer type; length according to EN558−1R20; body and disc AISI 316, shaft AISI 630; seat RTFE; nominal flange pressure PN10/16/25/ANSI150; medium temperature -55...+230°C; pressure range 0...25bar; DN 80mm; length 46mm

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BUW9-080-SSRS-B-H x 1.0

BUW9-080-SSRS-B-H

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body 1.4408; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -55...+230°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150
