Butterfly valve with pneumatic actuator Series BUW9-CSIS-S Store

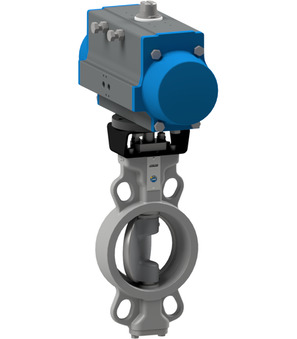

Butterfly valve with pneumatic actuator BUW9-080-CSIS-S12

Name: Butterfly valve with pneumatic actuator BUW9-080-CSIS-S12
Brand: STASTO
SKU: BUW9-080-CSIS-S12
Price: 9319.6 PLN
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW9-CSIS-S; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS1405-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 27.19 Kg
Short Itemnumber: BUW9080CSISS12

butterfly valve with pneumatic actuator series BUW9-CSIS-S; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 80mm; length 46mm; pressure range 0…16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1405-H

9.319,60 zł 9319.6 PLN 9.319,60 zł

DN
- 80 mm
Length
- 46 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...16 bar
Actuator
- PAS1405-H

This combination does not exist.

Availability:

Add to cart

dimension
DN	80 mm
Length	46 mm
Flange	PN10/16/25, ANSI150
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1405-H

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW9080CSISS12.stp

Download

BUW9-080-CSIS-B x 1.0

Butterfly valve with bare shaft BUW9-080-CSIS-B

Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart

PAS1405-H x 1.0

Pneumatic actuator PAS1405-H

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm

Add to Cart

APKTGB0051 x 1.0
