Butterfly valve with pneumatic actuator Series BUW9-CSRS-S Store

Butterfly valve with pneumatic actuator BUW9-050-CSRS-S22

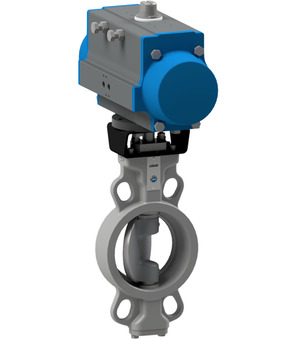

Name: Butterfly valve with pneumatic actuator BUW9-050-CSRS-S22
Brand: STASTO
SKU: BUW9-050-CSRS-S22
Price: 5117.6 PLN
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW9-CSRS-S; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C; DN 50mm; Length 43mm; Pressure range 0...10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS1005

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.7 Kg
Short Itemnumber: BUW9050CSRSS22

butterfly valve with pneumatic actuator series BUW9-CSRS-S; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 50mm; length 43mm; pressure range 0...10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1005

5.117,60 zł 5117.6 PLN 5.117,60 zł

DN
- 50 mm
Length
- 43 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...10 bar
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	43 mm
Flange	PN10/16/25, ANSI150
pressure
Pressure range	0...10 bar
characteristics
Actuator	PAS1005

BUW9-050-CSRS-B x 1.0

Butterfly valve with bare shaft BUW9-050-CSRS-B

Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

MFFALFUAL09733 x 1.0
