Butterfly valve with manual gear box Series BUW6-DSN-G Store

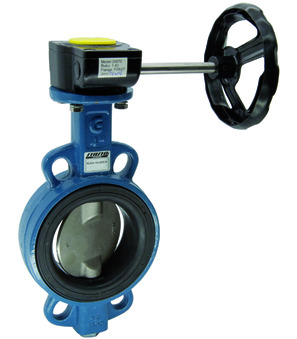

Butterfly valve with manual gear box BUW6-500-DSN-G

Name: Butterfly valve with manual gear box BUW6-500-DSN-G
Brand: STASTO
SKU: BUW6-500-DSN-G
Price: 25042.2 PLN
Availability: InStock

Butterfly valve with manual gear box Series BUW6-DSN-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 500mm; Length 127mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 154.72 Kg
Short Itemnumber: BUW6500DSNG

butterfly valve with manual gear box series BUW6-DSN-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 500mm; length 127mm

25.042,20 zł 25042.2 PLN 25.042,20 zł

DN
- 500 mm
Length
- 127 mm

This combination does not exist.

Availability:

Add to cart

DN	500 mm
Length	127 mm

Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 500mm; Length 127mm; Pressure range 0...16bar; Flange PN10/16/ANSI150
