Butterfly valve with manual gear box Series BUW6-DSN-G Store

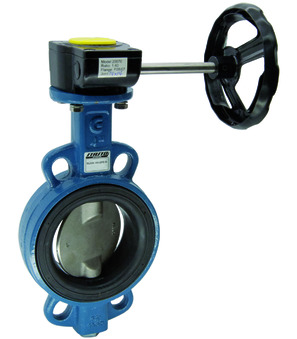

Butterfly valve with manual gear box BUW6-350-DSN-G-A

Name: Butterfly valve with manual gear box BUW6-350-DSN-G-A
Brand: STASTO
SKU: BUW6-350-DSN-G-A
Price: 9866.1 PLN
Availability: InStock

Butterfly valve with manual gear box Series BUW6-DSN-G-A; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 350mm; Length 78mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 43.062 Kg
Short Itemnumber: BUW6350DSNGA

butterfly valve with manual gear box series BUW6-DSN-G-A; ATEX Ex II 2GD c TX; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 350mm; length 78mm

9.866,10 zł 9866.1 PLN 9.866,10 zł

DN
- 350 mm
Length
- 78 mm
Design
- ATEX

This combination does not exist.

Availability:

Add to cart

dimension
DN	350 mm
Length	78 mm
design
Design	ATEX

Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 350mm; Length 78mm; Pressure range 0...16bar; Flange PN10/16/ANSI150
