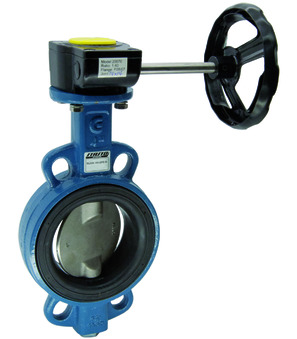

BUW6-350-DSE-G-S

BUW6-350-DSE-G-S

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 350mm; Length 78mm; Silicone-free

Intrastat No.: 84818085
Country of origin: Italy
Weight: 53.062 Kg
Short Itemnumber: BUW6350DSEGS
https://www.stasto.pl/web/image/product.template/155152/image_1920?unique=f96ddcc

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 350mm; length 78mm; silicone-free

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
Brand STASTO
Pressure range 0...16bar
Brand STASTO
BUW6-350-DSE-B-S x 1.0 Pcs
BUW6-350-DSE-B-S
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 350mm; Length 78mm; Pressure range 0…16bar; Flange PN10/16/ANSI150; Silicone-free
GB02-12/3510-01
GB02-12/3510-01 x 1.0 Pcs
GB02-12/3510-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F12; Diameter/Key 35/10mm
