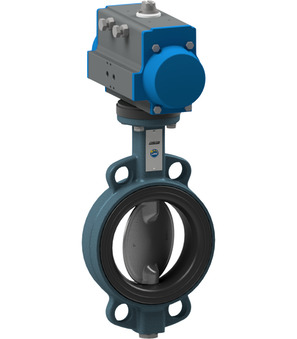

Butterfly valve with pneumatic actuator BUW6-300-SSXS-S22

Name: Butterfly valve with pneumatic actuator BUW6-300-SSXS-S22
Brand: STASTO
SKU: BUW6-300-SSXS-S22
Price: 30287.4 PLN
Availability: InStock

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body; Disc And Shaft 1.4408; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+150°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Actuator PAS2305

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6300SSXSS22

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1R20; body; disc and shaft AISI 316; liner EPDM HT; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+150°C; pressure range 0...10bar; DN 300mm; length 78mm; actuator PAS2305

30.287,40 zł 30287.4 PLN 30.287,40 zł

DN
- 300 mm
Length
- 78 mm
Pressure range
- 0...10 bar
Actuator
- PAS2305

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	300 mm
Length	78 mm
pressure
Pressure range	0...10 bar
characteristics
Actuator	PAS2305

BUW6-300-SSXS-B x 1.0

BUW6-300-SSXS-B

Butterfly valve with bare shaft; Intermediate flange feed; Length According to EN558−1 R20; Body; Disc And Shaft 1.4408; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -40...+150°C; Pressure range 0...16bar; DN 300mm; Length 78mm

Add to Cart

PAS2305 x 1.0

Pneumatic actuator PAS2305

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm

Add to Cart

APKTGB0014 x 1.0
