BUW6-300-DSV-S22-A3C01

Name: BUW6-300-DSV-S22-A3C01
Brand: STASTO
SKU: BUW6-300-DSV-S22-A3C01

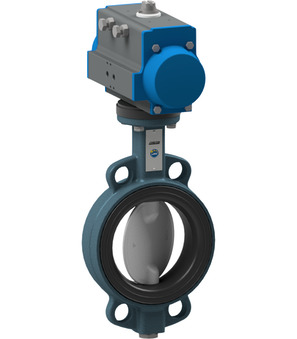

butterfly valve with pneumatic actuator; wafer type; ATEX - II 2GD Ex h X EPT 14; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 300mm; length 78mm; actuator PAS2305; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; Oil and grease-free finish

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6300DSVS22A3C01

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BUW6-300-DSV-B-A3C01 x 1.0

Butterfly valve with bare shaft BUW6-300-DSV-B-A3C01

butterfly valve with bare shaft; wafer type; ATEX - II 2GD Ex h X EPT 14; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 300mm; length 78mm; Oil and grease-free finish

Add to Cart

PAS2305 x 1.0

Pneumatic actuator PAS2305

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm

Add to Cart

APKTGB0014 x 1.0
