Butterfly valve with manual gear box Series BUW6-CSN-G-3E Store

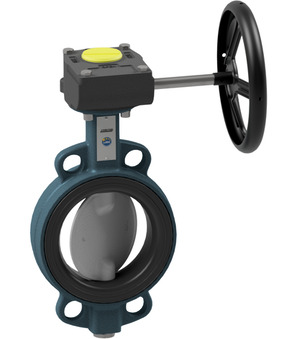

Butterfly valve with manual gear box BUW6-300-CSN-G-3E

Name: Butterfly valve with manual gear box BUW6-300-CSN-G-3E
Brand: STASTO
SKU: BUW6-300-CSN-G-3E
Price: 9680.4 PLN
Availability: InStock

Butterfly valve with manual gear box Series BUW6-CSN-G-3E; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 43.028 Kg
Short Itemnumber: BUW6300CSNG3E

butterfly valve with manual gear box series BUW6-CSN-G-3E; wafer type; length according to EN558−1R20; body carbon steel A216-WCB; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -25...+100°C; pressure range 0...16bar; DN 300mm; length 78mm; notch impact test -29°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

9.680,40 zł 9680.4 PLN 9.680,40 zł

DN
- 300 mm
Length
- 78 mm

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

DN	300 mm
Length	78 mm

BUW6-300-CSN-B-3E x 1.0

Butterfly valve with bare shaft BUW6-300-CSN-B-3E

Butterfly valve with bare shaft Series BUW6-CSN-B-3E; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
