Butterfly valve with hand lever Series BUW6-DSE-L-3C Store

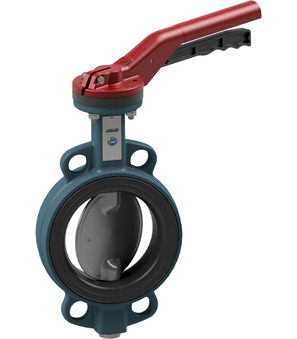

Butterfly valve with hand lever BUW6-250-DSV-L-3C

Name: Butterfly valve with hand lever BUW6-250-DSV-L-3C
Brand: STASTO
SKU: BUW6-250-DSV-L-3C
Price: 6573.6 PLN
Availability: InStock

butterfly valve with hand lever series BUW6-DSV-L-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 250mm; length 68mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6250DSVL3C

6.573,60 zł 6573.6 PLN 6.573,60 zł

DN
- 250 mm
Length
- 68 mm
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	250 mm
Length	68 mm
pressure
Pressure range	0...16 bar

BUW6-250-DSV-B-3C x 1.0

Butterfly valve with bare shaft BUW6-250-DSV-B-3C

butterfly valve with bare shaft series BUW6-DSV-B-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 250mm; length 68mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
