Butterfly valve with pneumatic actuator Series BUW6-DSP1-D2-A Store

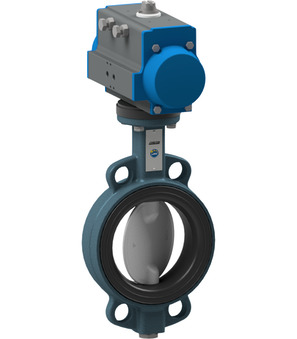

Butterfly valve with pneumatic actuator BUW6-250-DSP1-D22-A

Name: Butterfly valve with pneumatic actuator BUW6-250-DSP1-D22-A
Brand: STASTO
SKU: BUW6-250-DSP1-D22-A

Butterfly valve with pneumatic actuator Series BUW6-DSP1-D2-A; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar; DN 250mm; Length 68mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.9 Kg
Short Itemnumber: BUW6250DSP1D22A

butterfly valve with pneumatic actuator series BUW6-DSP1-D2-A; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner polyurethane; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+90°C; pressure range 0...10bar; DN 250mm; length 68mm

On request

DN
- 250 mm
Length
- 68 mm
Design
- ATEX
Actuator
- PAD140

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	250 mm
Length	68 mm
design
Design	ATEX
characteristics
Actuator	PAD140

BUW6-250-DSP1-D22 x 1.0

Butterfly valve with pneumatic actuator BUW6-250-DSP1-D22

Butterfly valve with pneumatic actuator Series BUW6-DSP1-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAD140

Add to Cart
