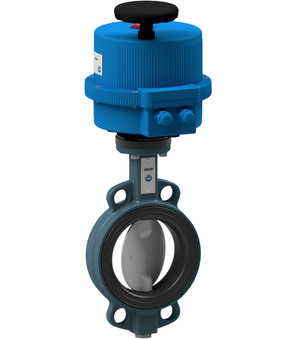

Butterfly valve with electrical actuator BUW6-250-DPE-0K2

Butterfly valve with electrical actuator BUW6-250-DPE-0K2

Butterfly valve with electrical actuator Series BUW6-DE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Disc Zinc plated ductile iron EN-GJS-400-15; Operating time 50s; Voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 28.3 Kg
Short Itemnumber: BUW6250DPE0K2
https://www.stasto.pl/web/image/product.template/134942/image_1920?unique=0225770

butterfly valve with electrical actuator series BUW6-DE-02; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 250mm; length 68mm; disc zinc plated ductile iron EN-GJS-400-15; operating time 50s; voltage 24VAC/DC

6.268,20 zł 6268.2 PLN 6.268,20 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Voltage
  • Disc
  • Actuator
  • Operating time
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
DN 250 mm
Length 68 mm
Disc GGG40 Zinc plated
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar
DN 250 mm
Length 68 mm
Disc GGG40 Zinc plated
Operating time 50 s
Voltage 24VAC/DC
Brand STASTO

BUW6-250-DPE-0K2

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1
German / Deutsch
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1
English
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1
Polish / Język polski
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1
BUW6-250-DPE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-250-DPE-B
Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Disc Ductile iron EN-GJS-400-15 Zinc plated; Pressure range 0…16bar; Nominal flange pressure PN10/16/ANSI150
Electrical actuator VB350-L
VB350-L x 1.0 Pcs
Electrical actuator VB350-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 24VAC/DC; Protection class IP67
APKTGB0011 x 1.0 Pcs
APKTGB0011
Mounting bracket For butterfly valve; DN250-300-F10/F07
