BUW6-200-DSN-S22-ABS54-C001-03-C002-31-LV-2
BUW6-200-DSN-S22

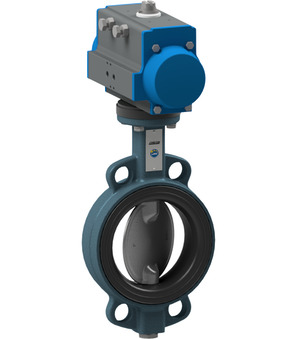

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAS2005
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC
Country of origin: Italy
Weight: 72.37 Kg
Short Itemnumber: BUW6200DSNS22ABS54C00103C00231LV2
Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAS2005
| dimension | |
|---|---|
| DN | 200 mm |
| Length | 60 mm |
| pressure | |
| Pressure range | 0...10 bar |
| characteristics | |
| Actuator | PAS2005 |
