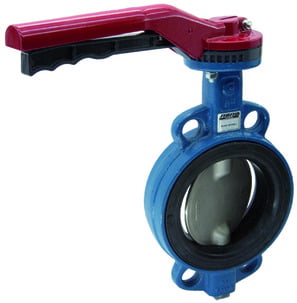

Butterfly valve with hand lever BUW6-200-DSN-L-3C

Butterfly valve with hand lever BUW6-200-DSN-L-3C

butterfly valve with hand lever series BUW6-DSN-L-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 200mm; length 60mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.0 Kg
Short Itemnumber: BUW6200DSNL3C
https://www.stasto.pl/web/image/product.template/224583/image_1920?unique=b9bbba7

butterfly valve with hand lever series BUW6-DSN-L-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 200mm; length 60mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

2.422,20 zł 2422.2 PLN 2.422,20 zł

cena na zapytanie

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us

Share

DN 200 mm
Length 60 mm
