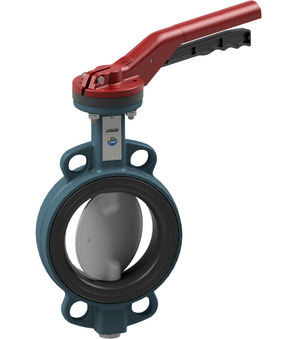

Butterfly valve with hand lever BUW6-200-DSES-L

Butterfly valve with hand lever BUW6-200-DSES-L

Butterfly valve with hand lever Series BUW6-DSES-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 200mm; Length 60mm; Pressure range 0...16bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.0 Kg
Short Itemnumber: BUW6200DSESL
https://www.stasto.pl/web/image/product.template/90252/image_1920?unique=140292a

Butterfly valve with hand lever Series BUW6-DSES-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 200mm; Length 60mm; Pressure range 0...16bar

2.599,50 zł 2599.5 PLN 2.599,50 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 200 mm
Length 60 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 200 mm
Length 60 mm

BUW6-200-DSES-L

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW6-200-DSES-B x 1.0 Pcs
BUW6-200-DSES-B
Butterfly valve, free shaft end DN200, wafer, PN10/16/A150, 0-16bar body GGG40, disc and shaft 1.4408, sleeve EPDM
HLBU-200-A
HLBU-200-A x 1.0 Pcs
HLBU-200-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG, BULC, BULA And BULY; DN 200mm
