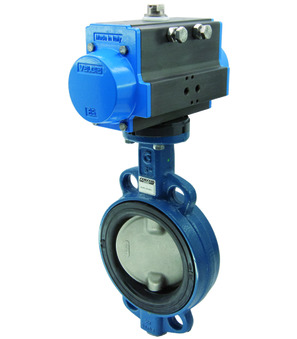

Butterfly valve with pneumatic actuator BUW6-200-DSE-S23-01

Butterfly valve with pneumatic actuator BUW6-200-DSE-S23-01

butterfly valve with pneumatic actuator series BUW6-DSE-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; Special grease; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAS2005; actuator mounted 90° twisted

Intrastat No.: 84818085
Country of origin: Italy
Weight: 71.9 Kg
Short Itemnumber: BUW6200DSES2301
https://www.stasto.pl/web/image/product.template/218264/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BUW6-DSE-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; Special grease; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAS2005; actuator mounted 90° twisted

13.347,00 zł 13347.0 PLN 13.347,00 zł

cena na zapytanie

  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Medium temperature

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 100 mm
Length 52 mm
pressure
Pressure range 0...10 bar
characteristics
Actuator PAS1155

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with pneumatic actuator Series BUW6-DSE_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s otočným pneumatickým pohonem série BUW6-DSE_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DSE_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z napędem pneumatycznym Seria BUW6-DSE_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DSE_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa pneumatskim aktuatorom serije BUW6-DSE_SRLATIN.pdf
Download
BUW6-200-DSE-B x 1.0
Butterfly valve with bare shaft BUW6-200-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
Pneumatic actuator PAS2005
PAS2005 x 1.0
Pneumatic actuator PAS2005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm
