BUW6-200-DPE-D22-A

Name: BUW6-200-DPE-D22-A
Brand: STASTO
SKU: BUW6-200-DPE-D22-A
Price: 4336.6 PLN
Availability: InStock

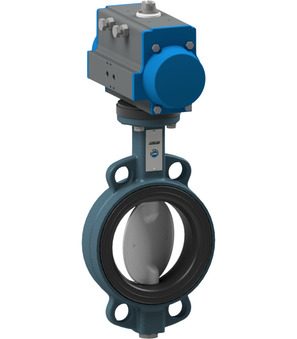

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Disc Zinc plated ductile iron EN-GJS-400-15; Actuator PAD125; ATEX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 25.38 Kg
Short Itemnumber: BUW6200DPED22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm; disc zinc plated ductile iron EN-GJS-400-15; actuator PAD125; ATEX

4.336,60 zł 4336.6 PLN 4.336,60 zł

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-200-DPE-B x 1.0

Butterfly valve with bare shaft BUW6-200-DPE-B

Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Disc GGG40 verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150

Add to Cart

PAD125 x 1.0

Pneumatic actuator PAD125

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm

Add to Cart

APKTGB0049 x 1.0
