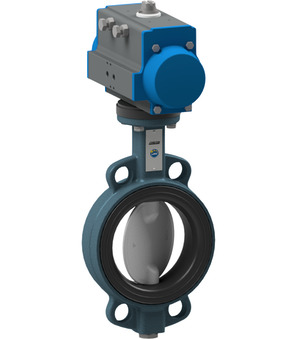

Butterfly valve with pneumatic actuator BUW6-150-DSV-S22

Name: Butterfly valve with pneumatic actuator BUW6-150-DSV-S22
Brand: STASTO
SKU: BUW6-150-DSV-S22
Price: 9808.9 PLN
Availability: InStock

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAS1605

Intrastat No.: 84818085
Country of origin: Italy

Weight: 38.87 Kg
Short Itemnumber: BUW6150DSVS22

9.808,90 zł 9808.9 PLN 9.808,90 zł

excl. tax

DN
- 150 mm
Length
- 56 mm
Design
- ATEX
Actuator
- PAS1605

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar
DN	150 mm
Length	56 mm
Design	ATEX

Specifications
Spare Parts

Pressure range	0...10bar
DN	150 mm
Length	56 mm
Design	ATEX

BUW6-150-DSV-B x 1.0 Pcs

Butterfly valve with bare shaft BUW6-150-DSV-B

Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm

PAS1605 x 1.0 Pcs

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

APKTGB0051 x 1.0 Pcs
