  5. Butterfly valve with pneumatic actuator Series BUW6-DSE-D2
  6. BUW6-150-DSE-D22-ABS55-C001-22-C002-31-LV-2-EB0X01

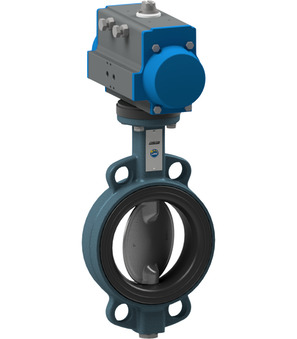

BUW6-150-DSE-D22-ABS55-C001-22-C002-31-LV-2-EB0X01

BUW6-150-DSE-D22-ABS55-C001-22-C002-31-LV-2-EB0X01

Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD100

Intrastat No.: 84818085
Country of origin: Italy
Weight: 14.738 Kg
Short Itemnumber: BUW6150DSED22ABS55C00122C00231LV2EB0X01
https://www.stasto.pl/web/image/product.template/240546/image_1920?unique=5320a75

Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD100

4.656,50 zł 4656.5 PLN 4.656,50 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Valve interface Namur 1/4"
DN 150 mm
Length 56 mm
Designs
Connector size 22
Switch type Crouzet 831613
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 230V/50-60Hz
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...10 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Coil C001
Actuator PAD100
Actuator 2 PAS

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with pneumatic actuator Series BUW6-DSE-D2_EN.pdf
Download
Assembly and Operating Instructions
1
Assembly instruction_Butterfly valve with pneumatic actuator Series BUW6-DSE-D2_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Butterfly valve with pneumatic actuator Series BUW6-DSE-D2_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s otočným pneumatickým pohonem série BUW6-DSE-D2_CS.pdf
Download
Montážní a provozní návody
1
Montážní předpis_uzavírací klapka s otočným pneumatickým pohonem série BUW6-DSE-D2_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_uzavírací klapka s otočným pneumatickým pohonem série BUW6-DSE-D2_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med pneumatisk drejedrev Serie BUW6-DSE-D2_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montageanleitung_Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Πεταλούδα απομόνωσης με πνευματικό περιστροφικό ενεργοποιητή Σειρά BUW6-DSE-D2_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de mariposa con actuador rotativo neumático Serie BUW6-DSE-D2_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili pneumaattisella kääntötoimilaitteella Sarja BUW6-DSE-D2_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec actionneur rotatif pneumatique Série BUW6-DSE-D2_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Leptir-ventil s pneumatskim rotacijskim pogonom Serija BUW6-DSE-D2_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DSE-D2_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Üzembehelyezési útmutató_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DSE-D2_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DSE-D2_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Serranda di intercettazione con attuatore pneumatico rotativo Serie BUW6-DSE-D2_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjeldventil med pneumatisk dreieaktuator Serie BUW6-DSE-D2_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met pneumatische draaiaandrijving Serie BUW6-DSE-D2_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z napędem pneumatycznym Seria BUW6-DSE-D2_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu_przepustnica z napędem pneumatycznym Seria BUW6-DSE-D2_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_przepustnica z napędem pneumatycznym Seria BUW6-DSE-D2_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă fluture cu actuator rotativ pneumatic serie BUW6-DSE-D2_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DSE-D2_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DSE-D2_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DSE-D2_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa pneumatskim aktuatorom serije BUW6-DSE-D2_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu_leptir ventil sa pneumatskim aktuatorom serije BUW6-DSE-D2_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_leptir ventil sa pneumatskim aktuatorom serije BUW6-DSE-D2_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med pneumatiskt vriddon Serie BUW6-DSE-D2_SV.pdf
Download
No spare parts are available for this product.
