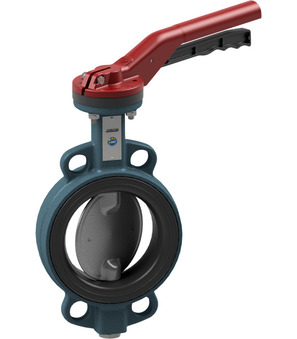

Butterfly valve with hand lever BUW6-125-DSV-L-3C

Name: Butterfly valve with hand lever BUW6-125-DSV-L-3C
Brand: STASTO
SKU: BUW6-125-DSV-L-3C
Price: 2424.4 PLN
Availability: InStock

Butterfly valve with hand lever Series BUW6-DSV-L-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; Nominal flange pressure PN10/16/ANSI150; Pressure range 0...16bar; DN 125mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.05 Kg
Short Itemnumber: BUW6125DSVL3C

Butterfly valve with hand lever Series BUW6-DSV-L-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner FKM; Medium temperature -10...+200°C; Nominal flange pressure PN10/16/ANSI150; Pressure range 0...16bar; DN 125mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

2.424,40 zł 2424.4 PLN 2.424,40 zł

DN
- 125 mm
Length
- 56 mm

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

DN	125 mm
Length	56 mm

BUW6-125-DSV-B-3C x 1.0

Butterfly valve with bare shaft BUW6-125-DSV-B-3C

Butterfly valve with bare shaft Series BUW6-DSV-B-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 125mm; Length 56mm
