BUW6-125-DSV-0K2
MA029-63B-10-05
MA029-63B-10-05
cena na zapytanie
APKTGB0197
APKTGB0197
1.086,80 zł
1.086,80 zł

BUW6-125-DSV-0K2

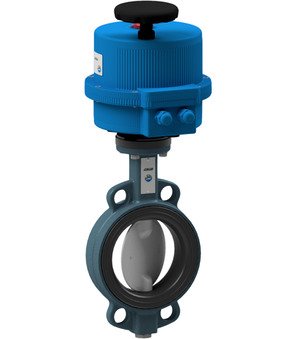

butterfly valve with electrical actuator series; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...10bar; DN 125mm; length 56mm; operating time 27s; voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.24 Kg
Short Itemnumber:BUW6125DSV0K2
https://www.stasto.pl/web/image/product.template/233318/image_1920?unique=0035f43

butterfly valve with electrical actuator series; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...10bar; DN 125mm; length 56mm; operating time 27s; voltage 24VAC/DC

5.098,10 zł 5098.1 PLN 5.098,10 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BUW6-125-DSV-B x 1.0
    Butterfly valve with bare shaft BUW6-125-DSV-B
    Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 125mm; Length 56mm
    Add to Cart
    Electrical actuator VB110-L
    VB110-L x 1.0
    Electrical actuator VB110-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
