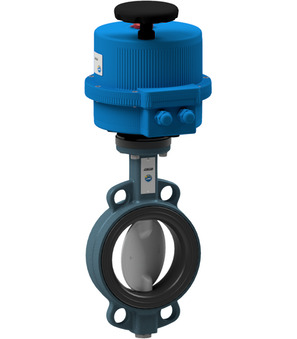

Butterfly valve with electrical actuator BUW6-125-DSE-CG2

Name: Butterfly valve with electrical actuator BUW6-125-DSE-CG2
Brand: STASTO
SKU: BUW6-125-DSE-CG2
Price: 5666.8 PLN
Availability: InStock

butterfly valve with electrical actuator series BUW6-DSE-C2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 125mm; length 56mm; operating time 27s; voltage 100-240VAC; with integrated positioner 4-20mA/0-10V; position feedback 4-20mA/0-10V

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.19 Kg
Short Itemnumber: BUW6125DSECG2

5.666,80 zł 5666.8 PLN 5.666,80 zł

DN
- 125 mm
Length
- 56 mm
Voltage
- 100-240VAC
Actuator
- VB110H
Operating time
- 27 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	125 mm
Length	56 mm
Electrical key figures
Voltage	100-240VAC
characteristics
Actuator	VB110H
Operating time	27 s

BUW6-125-DSE-B x 1.0

Butterfly valve with bare shaft BUW6-125-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Flange PN10/16/ANSI150

Add to Cart

VB110-H-P0S x 1.0

Electrical actuator VB110-H-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67

Add to Cart
