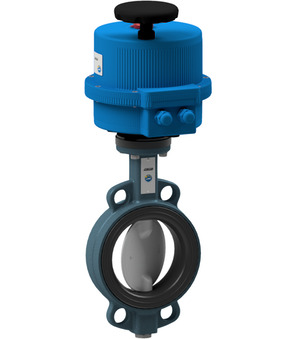

Butterfly valve with electrical actuator Series BUW6-DUE-P2; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated steel; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 100-240VAC; Accumulator for safety position NC
Butterfly valve with electrical actuator Series BUW6-DUE-P2; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated steel; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 100-240VAC; Accumulator for safety position NC
Technical specifications
| Pressure range | 0...10bar |
|---|
| Pressure range | 0...10bar |
