BUW6-100-DSV-S22-A3C01-EB0X14

BUW6-100-DSV-S22-A3C01-EB0X14

BUW6-100-DSV-S22-A3C01

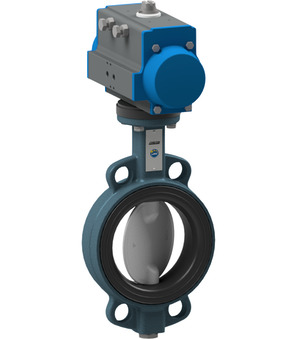

Absperrklappe mit Druckluftdrehantrieb; Zwischenflanschausführung; Baulänge gemäß EN558−1 R20; Gehäuse GGG40 epoxybeschichtet; Scheibe 1.4408; Welle 1.4016; Manschette EPDM; Flanschnenndruck PN10/16/ANSI150; einfachwirkender Antrieb; Steuerdruck 5,5...8bar; Mediumstemperatur -10...+130°C; Druckbereich 0...10bar; DN 100mm; Einbaulänge 52mm; Antrieb PAS1155; inkl. Abnahmeprüfzeugnis EN-10204-3.1; für Material, Druck und Dichtheit
EB0X14
Mounted limit switch box; IP65; Inductive dual proximity switch, Suitable for Actuators PAD/PAS052-270; Switching capacity 8VDC/3mA; Switch type P&F NCN3-F25F-N4; Function NC contact-Namur - ATEX; Material of case Plastic

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6100DSVS22A3C01EB0X14
https://www.stasto.pl/web/image/product.template/181613/image_1920?unique=f96ddcc

BUW6-100-DSV-S22-A3C01
Absperrklappe mit Druckluftdrehantrieb; Zwischenflanschausführung; Baulänge gemäß EN558−1 R20; Gehäuse GGG40 epoxybeschichtet; Scheibe 1.4408; Welle 1.4016; Manschette EPDM; Flanschnenndruck PN10/16/ANSI150; einfachwirkender Antrieb; Steuerdruck 5,5...8bar; Mediumstemperatur -10...+130°C; Druckbereich 0...10bar; DN 100mm; Einbaulänge 52mm; Antrieb PAS1155; inkl. Abnahmeprüfzeugnis EN-10204-3.1; für Material, Druck und Dichtheit
EB0X14
mounted limit switch box; IP65; inductive dual proximity switch, suitable for actuators PAD/PAS052-270; switching capacity 8VDC/3mA; switch type P&F NCN3-F25F-N4; function NC contact-Namur - ATEX; material of case plastic

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Design

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Design ATEX
Documents
Data sheets, drawings and CAD files
Design ATEX

BUW6-100-DSV-S22-A3C01-EB0X14

Documents

5 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
BUW6-100-DSV-S22-A3C01
BUW6-100-DSV-S22-A3C01 x 1.0 Pcs
BUW6-100-DSV-S22-A3C01
butterfly valve with pneumatic actuator; wafer type; ATEX - II 2GD Ex h X EPT 14; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAS1255; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; Oil and grease-free finish
EB0X14
EB0X14 x 1.0 Pcs
EB0X14
Mounted limit switch box; IP65; Inductive dual proximity switch, Suitable for Actuators PAD/PAS052-270; Switching capacity 8VDC/3mA; Switch type P&F NCN3-F25F-N4; Function NC contact-Namur - ATEX; Material of case Plastic
