BUW6-100-DSV-L-3C

BUW6-100-DSV-L-3C

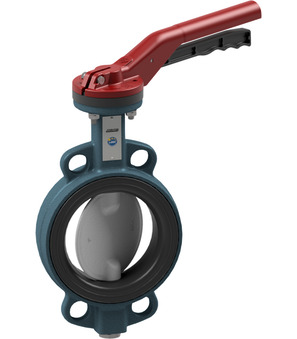

Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 100mm; Length 52mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.35 Kg
Short Itemnumber: BUW6100DSVL3C
https://www.stasto.pl/web/image/product.template/155463/image_1920?unique=140292a

butterfly valve with hand lever; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 100mm; length 52mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.803,60 zł 1803.6 PLN 1.803,60 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
Brand STASTO
Pressure range 0...16bar
Brand STASTO
BUW6-100-DSV-B-3C x 1.0 Pcs
Butterfly valve with bare shaft BUW6-100-DSV-B-3C
Butterfly valve with bare shaft Series BUW6-DSV-B-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 100mm; Length 52mm
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
