Butterfly valve with hand lever Series BUW6-DSN-L-A Store

Butterfly valve with hand lever BUW6-100-DSN-L-A

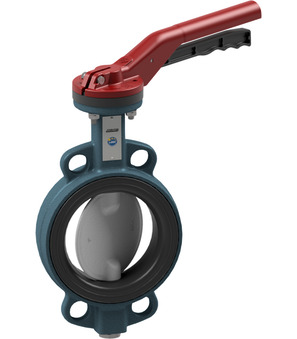

Name: Butterfly valve with hand lever BUW6-100-DSN-L-A
Brand: STASTO
SKU: BUW6-100-DSN-L-A
Price: 968.9 PLN
Availability: InStock

Butterfly valve with hand lever Series BUW6-DSN-L-A; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 100mm; Length 52mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.35 Kg
Short Itemnumber: BUW6100DSNLA

butterfly valve with hand lever series BUW6-DSN-L-A; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 100mm; length 52mm

968,90 zł 968.9 PLN 968,90 zł

DN
- 100 mm
Length
- 52 mm
Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	100 mm
Length	52 mm
design
Design	ATEX

BUW6-100-DSN-B x 1.0

Butterfly valve with bare shaft BUW6-100-DSN-B

Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Flange PN10/16/ANSI150

Add to Cart
