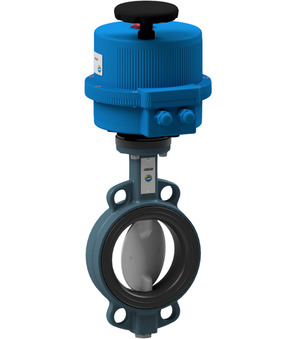

Butterfly valve with electrical actuator BUW6-100-DSE-CG2

Butterfly valve with electrical actuator BUW6-100-DSE-CG2

butterfly valve with electrical actuator series BUW6-DSE-C2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; operating time 27s; voltage 100-240VAC; with integrated positioner 4-20mA/0-10V; position feedback 4-20mA/0-10V

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.35 Kg
Short Itemnumber: BUW6100DSECG2
https://www.stasto.pl/web/image/product.template/224942/image_1920?unique=b9bbba7

butterfly valve with electrical actuator series BUW6-DSE-C2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; operating time 27s; voltage 100-240VAC; with integrated positioner 4-20mA/0-10V; position feedback 4-20mA/0-10V

5.430,90 zł 5430.9 PLN 5.430,90 zł

cena na zapytanie

  • DN
  • Length
  • Voltage
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 100 mm
Length 52 mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB110H
Operating time 27 s
BUW6-100-DSE-B x 1.0
Butterfly valve with bare shaft BUW6-100-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
Electrical actuator VB110-H-P0S
VB110-H-P0S x 1.0
Electrical actuator VB110-H-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
Accessory Products
Electrical actuator VB110-H
VB110-H
Electrical actuator VB110-H
