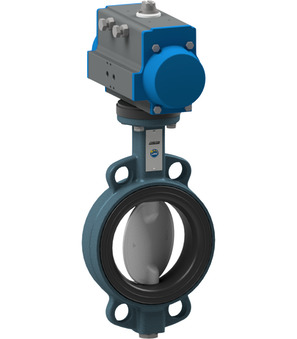

BUW6-080-DUE-D12

Name: BUW6-080-DUE-D12
Brand: STASTO
SKU: BUW6-080-DUE-D12
Price: 2135.3 PLN
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW6-DE-D1; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Disc Stahl verzinkt; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy

Weight: 8.05 Kg
Short Itemnumber: BUW6080DUED12

butterfly valve with pneumatic actuator series BUW6-DE-D1; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...16bar; DN 80mm; length 46mm; disc Stahl verzinkt; actuator PAD085

2.135,30 zł 2135.3 PLN 2.135,30 zł

excl. tax

DN
- 80 mm
Length
- 46 mm
Pressure range
- 0...10 bar
Disc
- Zinc plated steel
Actuator
- PAD075
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10 bar
DN	80 mm
Length	46 mm
Disc	Zinc plated steel

All specifications (5)

Specifications
Spare Parts

Pressure range	0...10 bar
DN	80 mm
Length	46 mm
Disc	Zinc plated steel
Brand	STASTO

BUW6-080-DUE-B x 1.0 Pcs

Butterfly valve with bare shaft BUW6-080-DUE-B

Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Disc Stahl verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150
