BUW6-080-DSN-L-3H

Name: BUW6-080-DSN-L-3H
Brand: STASTO
SKU: BUW6-080-DSN-L-3H
Price: 818.8 PLN
Availability: InStock

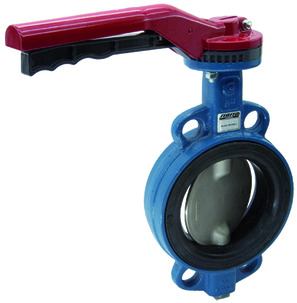

Butterfly valve with hand lever; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Incl. Inspection certificate API 598 For pressure and tightness; Incl. Inspection certificate EN-10204-3.1 For material

Intrastat No.: 84818085
Country of origin: Italy
Weight: 3.85 Kg
Short Itemnumber: BUW6080DSNL3H

butterfly valve with hand lever; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 80mm; length 46mm; incl. inspection certificate API 598 for pressure and tightness; incl. inspection certificate EN-10204-3.1 for material

818,80 zł 818.8 PLN 818,80 zł

DN
- 80 mm
Length
- 46 mm

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

DN	80 mm
Length	46 mm

BUW6-080-DSN-B-3H x 1.0

Butterfly valve with bare shaft BUW6-080-DSN-B-3H

butterfly valve with bare shaft; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 80mm; length 46mm; pressure range 0...16bar; nominal flange pressure PN10/16/ANSI150; incl. inspection certificate API 598 for pressure and tightness; incl. inspection certificate EN-10204-3.1 for material
