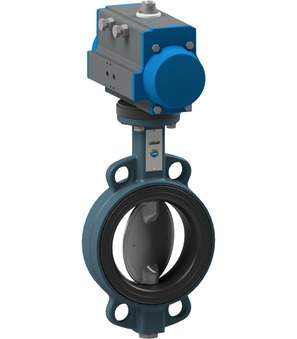

BUW6-080-DSE-D22-ABS54-C001-03-C002-31-6-EB0X02

BUW6-080-DSE-D22-ABS54-C001-03-C002-31-6-EB0X02

BUW6-080-DSE-D22
butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAD075
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X02
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 100mA/24VDC; switch type Crouzet 831618; contact material alloy of gold; material of case plastic

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 7.938 Kg
Short Itemnumber: BUW6080DSED22ABS54C00103C002316EB0X02
https://www.stasto.pl/web/image/product.template/224613/image_1920?unique=06e4003

BUW6-080-DSE-D22
butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAD075
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X02
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 100mA/24VDC; switch type Crouzet 831618; contact material alloy of gold; material of case plastic

3.656,40 zł 3656.4 PLN 3.656,40 zł

cena na zapytanie

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 80 mm
Length 46 mm
Voltage 24VDC / 48V/50-60Hz
All specifications (9)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 80 mm
Length 46 mm
Voltage 24VDC / 48V/50-60Hz
Design Standard
Switch type Crouzet 831618
Contact material Alloy of gold
Material of case Plastic
Brand STASTO

BUW6-080-DSE-D22-ABS54-C001-03-C002-31-6-EB0X02

Documents

15 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Danish / Dansk
ZIP

Data Sheets

4

CAD / 3D

5
German / Deutsch
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Greek / Ελληνικά
ZIP

Data Sheets

4

CAD / 3D

5
English
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Spanish / Español
ZIP

Data Sheets

4

CAD / 3D

5
Finnish / Suomi
ZIP

Data Sheets

4

CAD / 3D

5
French / Français
ZIP

Data Sheets

4

CAD / 3D

5
Croatian / hrvatski jezik
ZIP

Data Sheets

4

CAD / 3D

5
Hungarian / Magyar
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Italian / Italiano
ZIP

Data Sheets

4

CAD / 3D

5
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

4

CAD / 3D

5
Dutch / Nederlands
ZIP

Data Sheets

4

CAD / 3D

5
Polish / Język polski
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Romanian / română
ZIP

Data Sheets

4

CAD / 3D

5
Slovenian / slovenščina
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Serbian (Latin) / srpski
ZIP

Data Sheets

5

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Swedish / Svenska
ZIP

Data Sheets

4

CAD / 3D

5
Butterfly valve with pneumatic actuator BUW6-080-DSE-D22
BUW6-080-DSE-D22 x 1.0 Pcs
Butterfly valve with pneumatic actuator BUW6-080-DSE-D22
Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAD075
Mounted pilot valve ABS54
ABS54 x 1.0 Pcs
Mounted pilot valve ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
C002-31-6 x 1.0 Pcs
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X02
EB0X02 x 1.0 Pcs
EB0X02
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 100mA/24VDC; Switch type Crouzet 831618; Contact material Alloy of gold; Material of case Plastic
