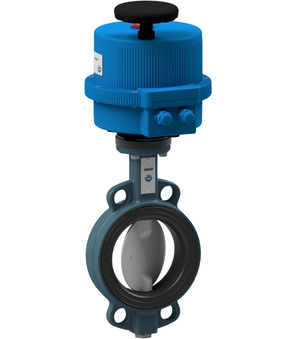

Butterfly valve with electrical actuator BUW6-080-DSE-0K2-01

Butterfly valve with electrical actuator BUW6-080-DSE-0K2-01

butterfly valve with electrical actuator series BUW6-DSE-02; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; operating time 27s; voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.85 Kg
Short Itemnumber: BUW6080DSE0K201
https://www.stasto.pl/web/image/product.template/226569/image_1920?unique=b9bbba7

butterfly valve with electrical actuator series BUW6-DSE-02; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; operating time 27s; voltage 24VAC/DC

3.812,20 zł 3812.2 PLN 3.812,20 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-080-DSE-B x 1.0
    Butterfly valve with bare shaft BUW6-080-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    Electrical actuator VB110-L
    VB110-L x 1.0
    Electrical actuator VB110-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
