BUW6-050-DUE-D22-EB0X01

BUW6-050-DUE-D22-EB0X01

BUW6-050-DUE-D22

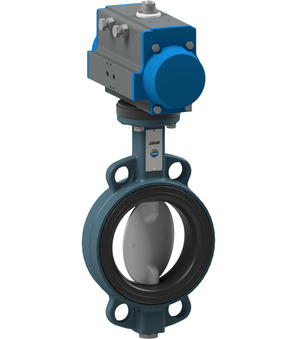

Butterfly valve with pneumatic actuator Series BUW6-DE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Disc Stahl verzinkt; Actuator PAD063
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2
Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.018 Kg
Short Itemnumber: BUW6050DUED22EB0X01
https://www.stasto.pl/web/image/product.template/192345/image_1920?unique=75ed53f

BUW6-050-DUE-D22
butterfly valve with pneumatic actuator series BUW6-DE-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 50mm; length 43mm; disc Stahl verzinkt; actuator PAD063
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

2.053,90 zł 2053.9 PLN 2.053,90 zł

cena na zapytanie

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Disc
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 50 mm
Length 43 mm
Disc Zinc plated steel
All specifications (8)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 50 mm
Length 43 mm
Disc Zinc plated steel
Switch type Crouzet 831613
Contact material Silver-nickel
Material of case Plastic
Brand STASTO
