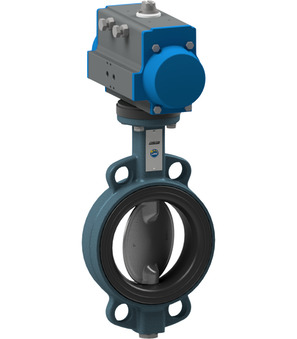

Butterfly valve with pneumatic actuator BUW6-050-DSX-S22

Name: Butterfly valve with pneumatic actuator BUW6-050-DSX-S22
Brand: STASTO
SKU: BUW6-050-DSX-S22
Price: 2403.7 PLN
Availability: InStock

butterfly valve with pneumatic actuator series BUW6-DSX-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM HT; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+150°C; pressure range 0...10bar; DN 50mm; length 43mm; actuator PAS0855

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.75 Kg
Short Itemnumber: BUW6050DSXS22

2.403,70 zł 2403.7 PLN 2.403,70 zł

DN
- 50 mm
Length
- 43 mm
Pressure range
- 0...16 bar
Actuator
- PAS0855

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	43 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS0855

BUW6-050-DSX-B x 1.0

BUW6-050-DSX-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+150°C; Pressure range 0...16bar; DN 50mm; Length 43mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

MFFALFUAL09733 x 1.0
