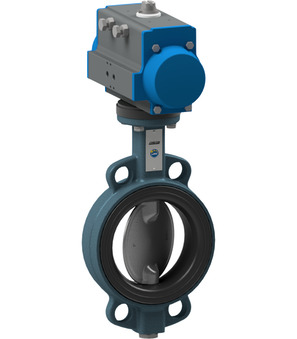

Butterfly valve with pneumatic rotary actuator BUW6-050-DSE-T22 (copy)

Name: Butterfly valve with pneumatic rotary actuator BUW6-050-DSE-T22 (copy)
Brand: STASTO
SKU: BUW6-050-DSV-T12
Price: 2663.3 PLN
Availability: InStock

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...16bar; DN 50mm; length 43mm; actuator PAS0855-B; safety position NO

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.75 Kg
Short Itemnumber: BUW6050DSVT12

2.663,30 zł 2663.3 PLN 2.663,30 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-050-DSV-B x 1.0

Butterfly valve with bare shaft BUW6-050-DSV-B

Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 50mm; Length 43mm

Add to Cart

PAS0855-B x 1.0

PAS0855-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

MFFALFUAL09733 x 1.0
