Butterfly valve with hand lever BUW6-050-DSN-L-3C

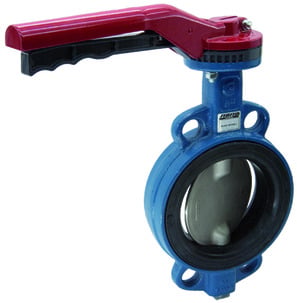

Butterfly valve with hand lever BUW6-050-DSN-L-3C

butterfly valve with hand lever series BUW6-DSN-L-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 50mm; length 43mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 3.0 Kg
Short Itemnumber: BUW6050DSNL3C

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.pl/web/image/product.template/228403/image_1920?unique=fcc32fd

butterfly valve with hand lever series BUW6-DSN-L-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 50mm; length 43mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

661,80 zł 661.8 PLN 661,80 zł

cena na zapytanie

excl. tax
  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 50 mm
Length 43 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 50 mm
Length 43 mm

BUW6-050-DSN-L-3C

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW6-050-DSN-B-3C x 1.0 Pcs
Butterfly valve with bare shaft BUW6-050-DSN-B-3C
butterfly valve with bare shaft series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 50mm; length 43mm; pressure range 0...16bar; nominal flange pressure PN10/16/ANSI150; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
