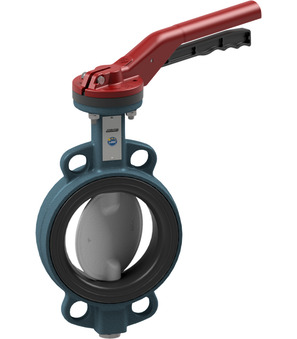

Butterfly valve with hand lever BUW6-040-DSV-L

Butterfly valve with hand lever BUW6-040-DSV-L

Butterfly valve with hand lever Series BUW6-DSV-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 40mm; Length 33mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 2.55 Kg
Short Itemnumber: BUW6040DSVL
https://www.stasto.pl/web/image/product.template/99726/image_1920?unique=b9bbba7

butterfly valve with hand lever series BUW6-DSV-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 40mm; length 33mm

1.085,00 zł 1085.0 PLN 1.085,00 zł

cena na zapytanie

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us

Share

DN 40 mm
Length 33 mm
BUW6-040-DSV-B x 1.0
Butterfly valve with bare shaft BUW6-040-DSV-B
Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 40mm; Length 33mm
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
